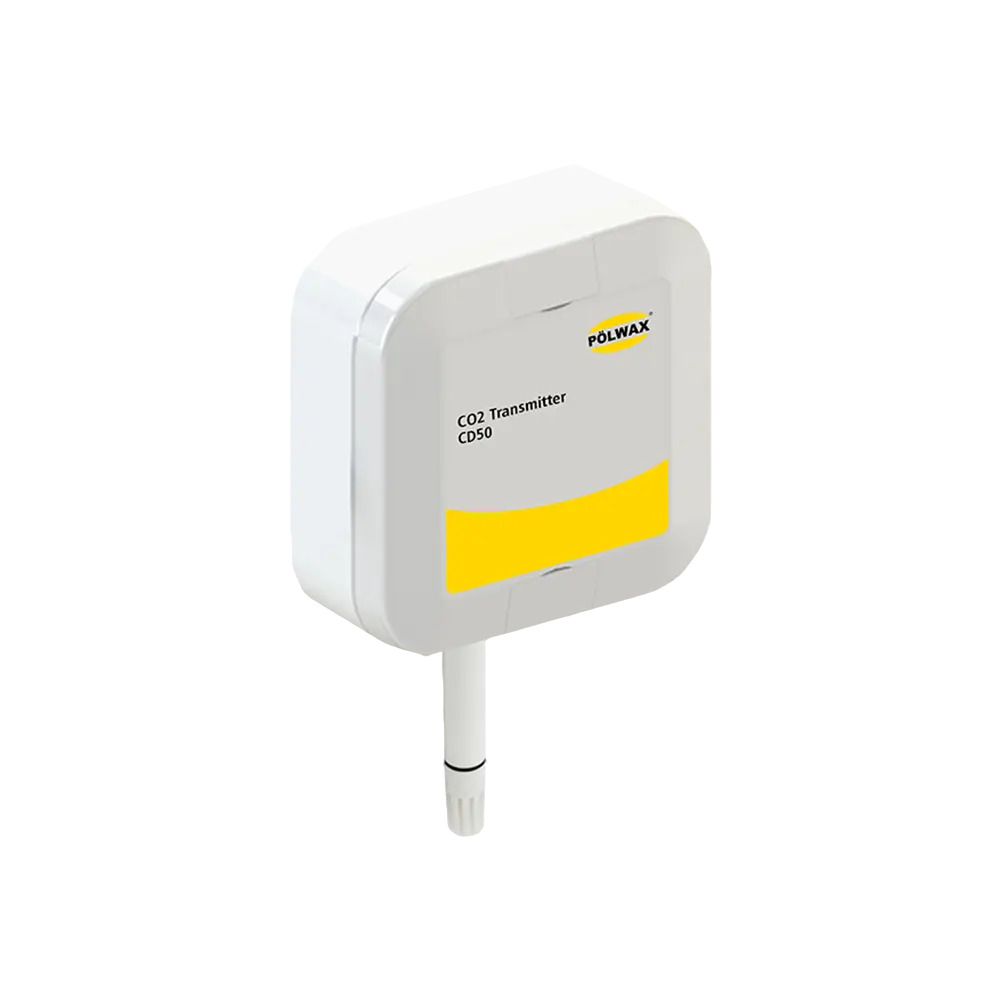

CO2 Transmitter CD50

Get a Price/Quote

CO2 Transmitter CD50 Specification

Resolution
1ppm

Output
4-20mA, 0-10V

Measurement Range
0-2000ppm/ 0-5000ppm/ 0-10000ppm

Mounting
Wall mount, Pole mount

Humidity %
0-95% RH

Signal Type
Rs485 (Modbus RTU), 4-20mA, 0-5V, 0-10V

Housing Material
Industrial-grade ABS

Process Connection
High-strength, dustproof, waterproof

Sensor Type
High-precision photodiode

Protection
Ip65

Power Supply
12V to 24V DC

About CO2 Transmitter CD50

Measurement Range	02000 ppm / 05000 ppm / 010000 ppm
Accuracy	5000 ppm: (50 ppm + 3% F.S.) @ 25C 10000 ppm: (50 ppm + 5% F.S.) @ 25C
Resolution	1 ppm
Warm-up Time	2 min (available), 10 min (max.)
Sensor Type	High-precision photodiode
Stability	< 2% F.S.
Non-linearity	< 1% F.S.
Data Update	2 seconds
Output Options	420 mA, 010 V
Output Signals	RS485 (Modbus RTU), 420 mA, 05 V, 010 V
Power Supply	1224 V DC
Humidity Range	095% RH (non-condensing)
Protection Rating	IP65 (water-resistant and dustproof)
Mounting Options	Wall mount, Pole mount
Communication Protocol	Modbus RTU
Housing Material	Industrial-grade ABS
Process Connection	High-strength, dustproof, waterproof

Easy to Install and suitable for Wall Mounting
High Accuracy and Stability
Wide Measuring Range
Compact and Durable Design
User-Friendly Configuration
Ruggedized Enclosure

The Polwax CD50 is an advanced carbon dioxide CO transmitter designed to deliver accurate and reliable CO concentration measurements across diverse environments. Engineered with precision and durability in mind, thecarbon dioxide CD50 ensures consistent performance for both indoor and industrial applications.

The gas-permeable membrane on the sensor shell has good gas permeability, the gas in the environment can circulate freely, and the imported sensor is built in the shell, which has high measurement accuracy. Quick Response. Our company provides a one-year warranty for the product. Under normal circumstances, the service life is up to 5 years. Our co2 sensor housing is waterproof and dustproof and is not easily damaged. Only need to replace the breathable membrane regularly every year.
