Smart Vibration Sensor Specification

Acceleration Range
0 - 16 g

Operating Temperature
-40 to +80 Celsius (oC)

Housing Material
Stainless Steel / Aluminum

Sensor Type
MEMS / Piezoelectric

Velocity Range
0 - 50 mm/s

Frequency
10 Hz 5 kHz (up to 10 kHz optional) Hertz (HZ)

Axis Type
Single Axis

Response Time
1 second Seconds

Humidity %
95% RH

Output
4-20 mA / 0-10 V / Rs485

Protection
IP67

Measurement Range
Velocity / Acceleration (RMS

Connector
M12 / Cable

Sensitivity
100 mV/g (typical)

Model
VibeSENSE P100

Mounting
Stud / Magnetic / Adhesive

Power Supply
12 - 30 V DC

Power Consumption
1.5 W Watt (W)

Accuracy
+/-1.5% FS %

About Smart Vibration Sensor

Model	VibeSENSE P100
Sensor Type	MEMS / Piezoelectric
Measurement	Velocity / Acceleration (RMS)
Velocity Range	0 50 mm/s
Acceleration Range	0 16 g
Frequency Range	10 Hz 5 kHz (up to 10 kHz optional)
Accuracy	1.5% FS
Sensitivity	100 mV/g (typical)
Output Options	420 mA / 010 V / RS485
Supply Voltage	12 30 V DC
Power Consumption	< 1.5 W
Response Time	< 1 second
Operating Temperature	-40C to +80C
Storage Temperature	-40C to +100C
Humidity	0 95% RH (non-condensing)
Protection Class	IP67
Housing Material	Stainless Steel / Aluminum
Mounting	Stud / Magnetic / Adhesive
Connector	M12 / Cable
Axis	Single Axis

High Accuracy and Stability

Wide Measuring Range

Low Power Consumption

Rugged IP-rated industrial design

Easy installation (stud / magnetic / adhesive)

Compact and Durable Design

User-Friendly Configuration

Energy Efficient

True RMS vibration measurement

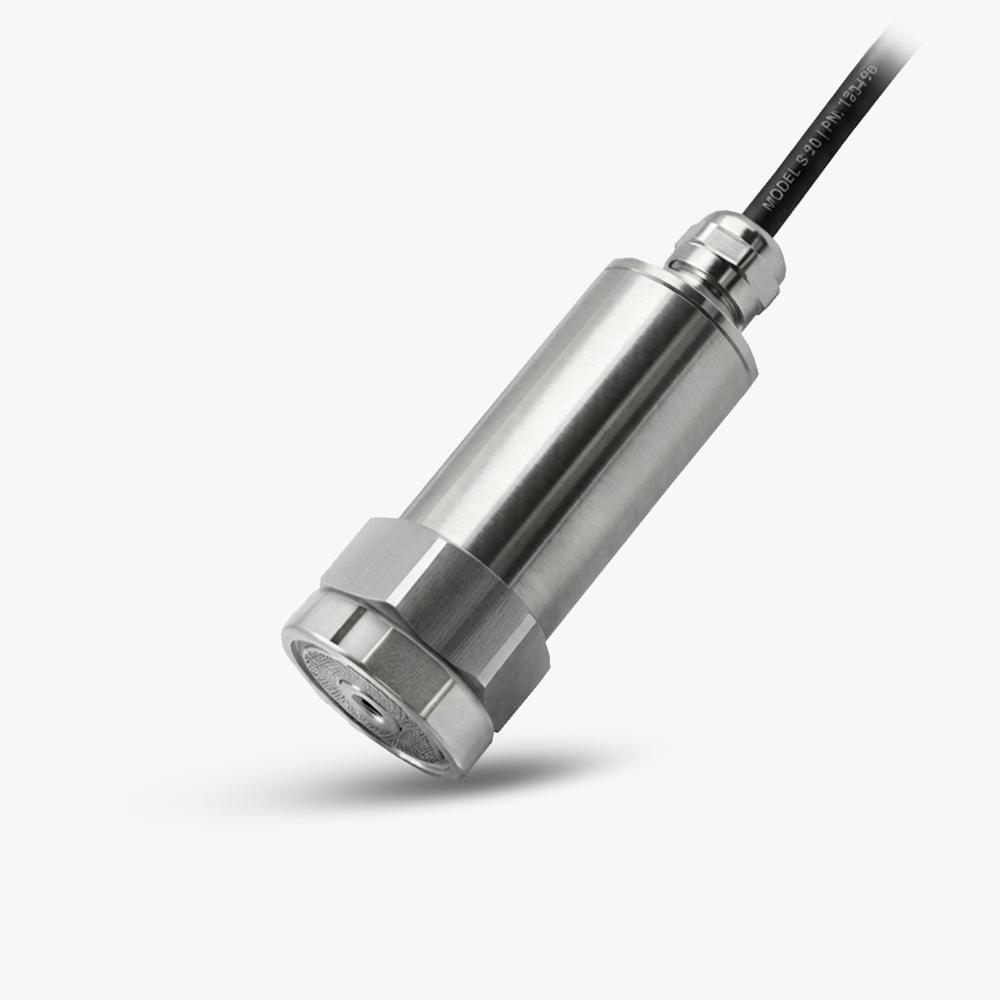

The Polwax VibeSENSE P100 Smart Vibration Sensor is an advanced industrial monitoring solution designed for accurate and continuous measurement of vibration in rotating and critical machinery. It captures key parameters such as velocity and acceleration (RMS), enabling early detection of faults like imbalance, misalignment, looseness, and bearing wear.

Built for modern industrial environments, the VibeSENSE P100 supports predictive maintenance strategies, helping industries reduce downtime, improve equipment reliability, and optimize operational efficiency.
