DP Transmitter

Unleash the potential of our DP Transmitter, a cutting-edge solution designed to provide spectacular performance in differential pressure measurement. Our exclusive range includes the Polwax DPT30 Differential Pressure Transmitter, the Polwax DPT20 Differential Pressure Transmitter, and the Polwax DPT WM Differential Pressure Transmitter, each crafted to ensure impeccable precision, reliability, and efficiency. With over 1.0 years of expertise as a leading service provider, manufacturer, and supplier, we strive to deliver the best quality at the best price. Featuring robust construction, advanced digital communication for seamless integration, high accuracy, durability under extreme conditions, and minimal maintenance requirements, these transmitters are the pinnacle of engineering excellence. Comparable to none, their reliability ensures consistent output even in the toughest industrial applications. With a commitment to exceptional service and a supply ability spanning All India, we are proud to offer these solutions in limited stock for those seeking the ultimate in quality and performance.

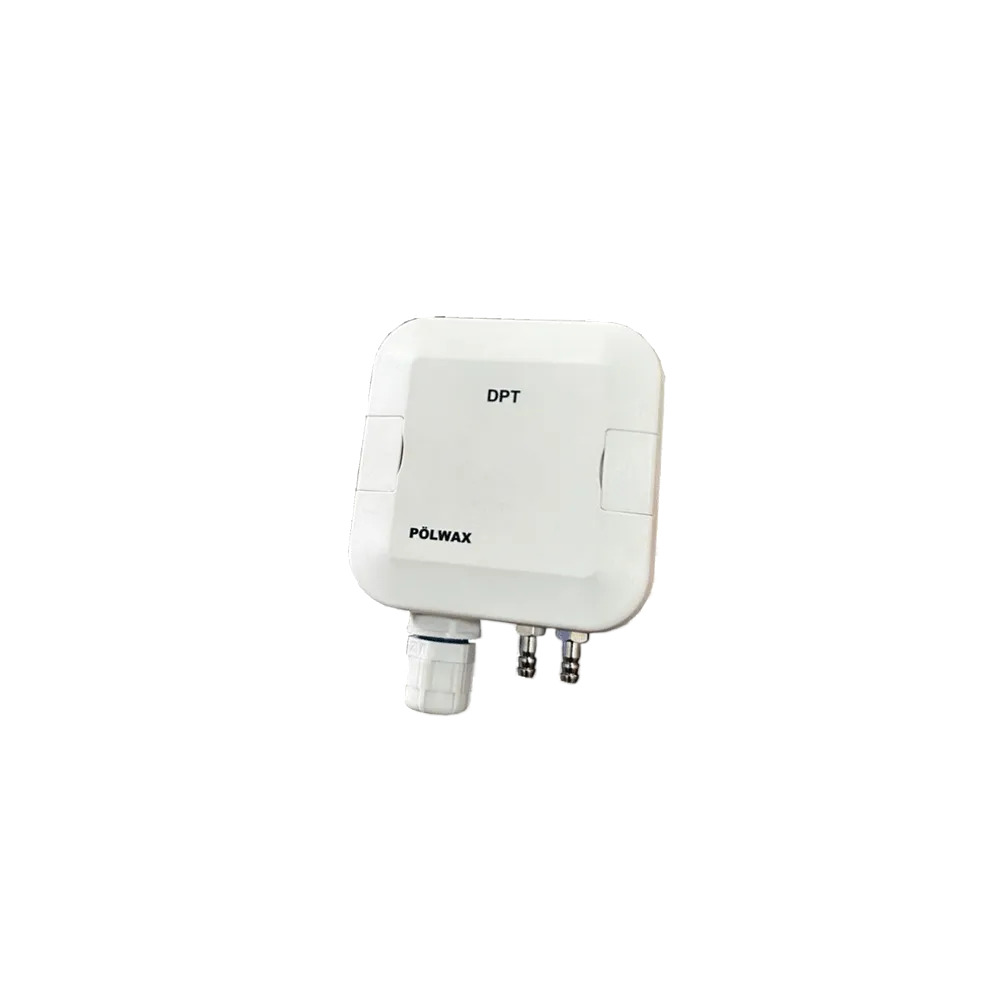

Polwax Transmitter DPT WM

  • Accuracy
  • 0.25% / 0.5% of FS
  • Connecting Type
  • 3 Wire
  • Connectivity Type
  • Screw terminals
  • Material
  • ABS
  • Measurement Range
  • 0-7000 Pa
  • Operating Temperature
  • -10C to +60C
  • Output
  • 4-20 mA, RS485 Modbus RTU / 0- 10V (Optional)
  • Power Supply
  • 12 24 VDC
  • Pressure Range
  • 1 PSI Maximum
  • Process Connection
  • Push-on connection for 3/16 ID tubing
  • Protection
  • IP54
  • Storage Temperature
  • 10 to 80 Celsius (oC)
  • Weight
  • 70 Grams (g)

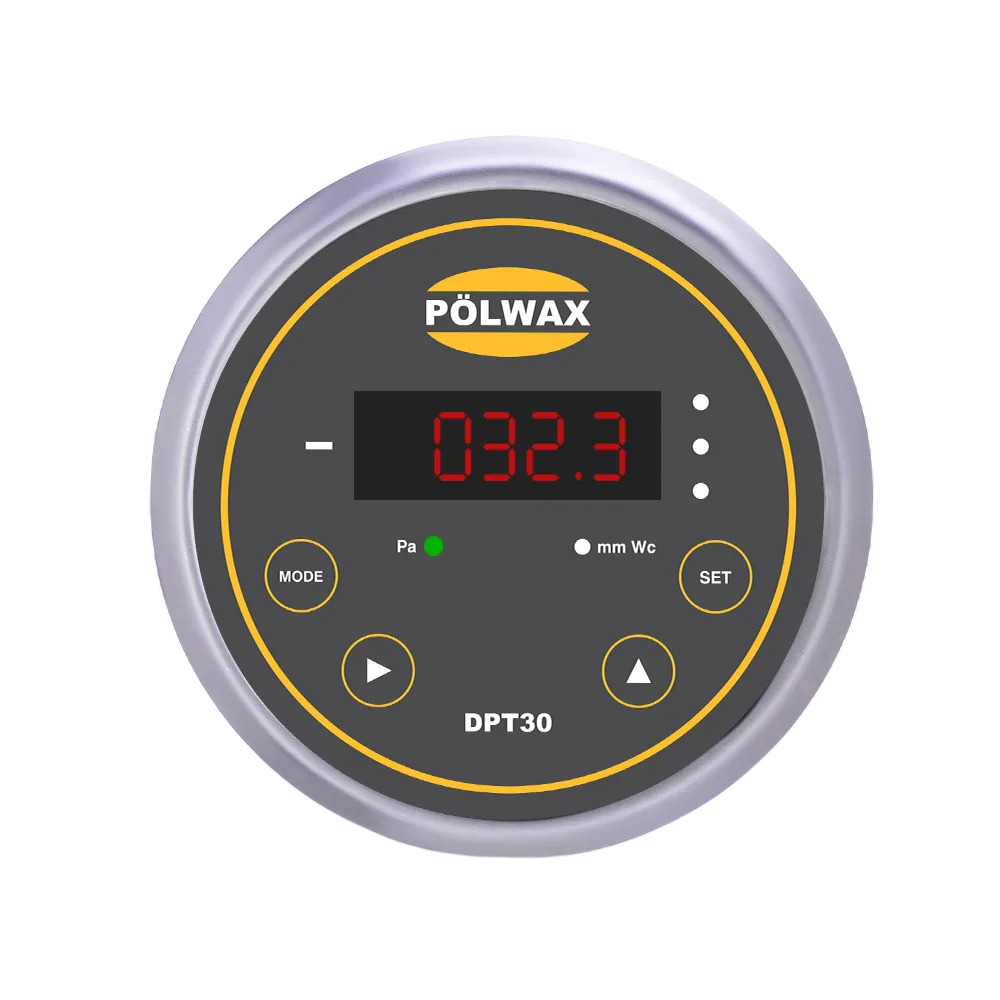

Polwax Transmitter DPT30

MOQ : 1 Piece

  • Accuracy
  • +/-0.5 %
  • Color
  • Black
  • Connecting Type
  • 3 Wire
  • Connectivity Type
  • Screw terminals
  • Cut Size
  • Round (80 mm)
  • Dimension (L*W*H)
  • 86 x 35 x 80
  • Material
  • ABS
  • Measurement Range
  • 0 - 7000 Pa
  • Measuring Units
  • Pa & mmWC
  • Model
  • DPT30
  • Mounting
  • Panel Mounting
  • Mounting Type
  • Panel Mounting
  • Operating Temperature
  • -10C to +60C
  • Output
  • 0 -10 V ( Optional )
  • Power Supply
  • 12 24 VDC
  • Process Connection
  • Push-on connection for 3/16 ID tubing
  • Protection
  • IP54
  • Response Time
  • 500 ms
  • Storage Temperature
  • 10 to 70 Celsius (oC)

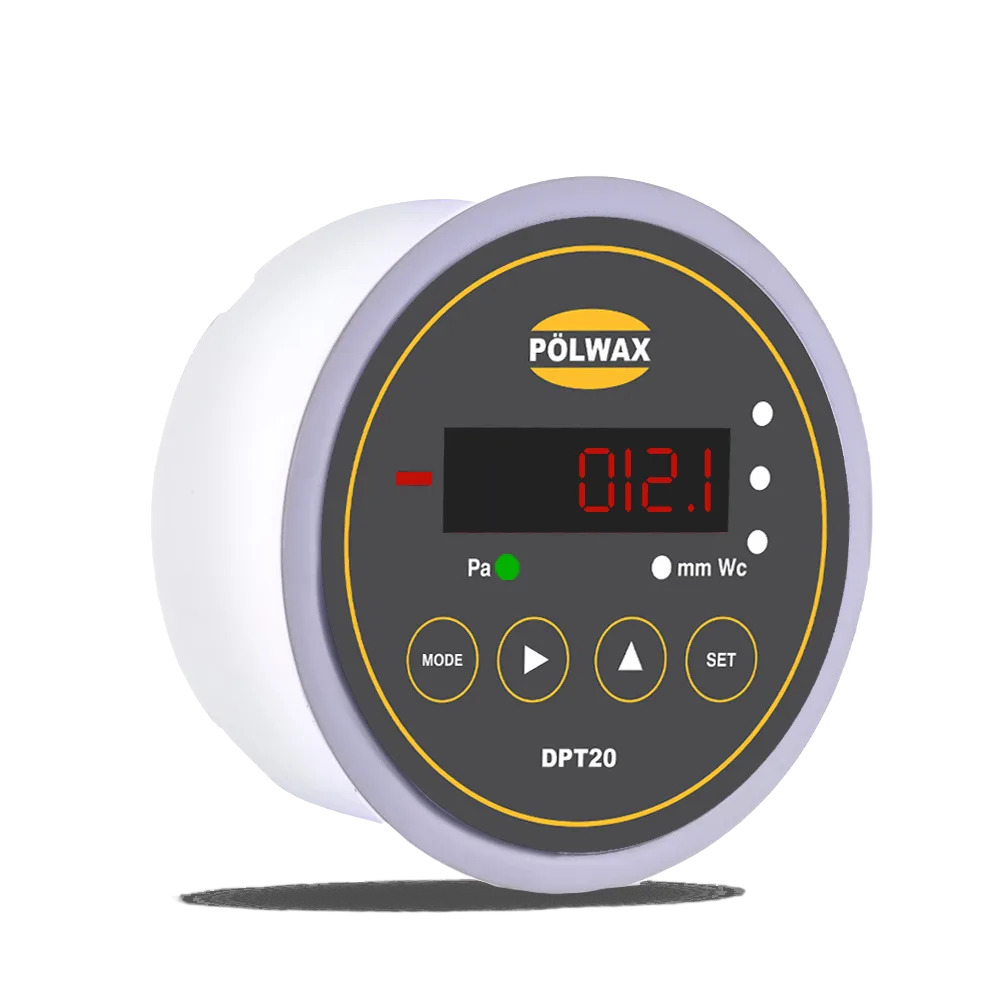

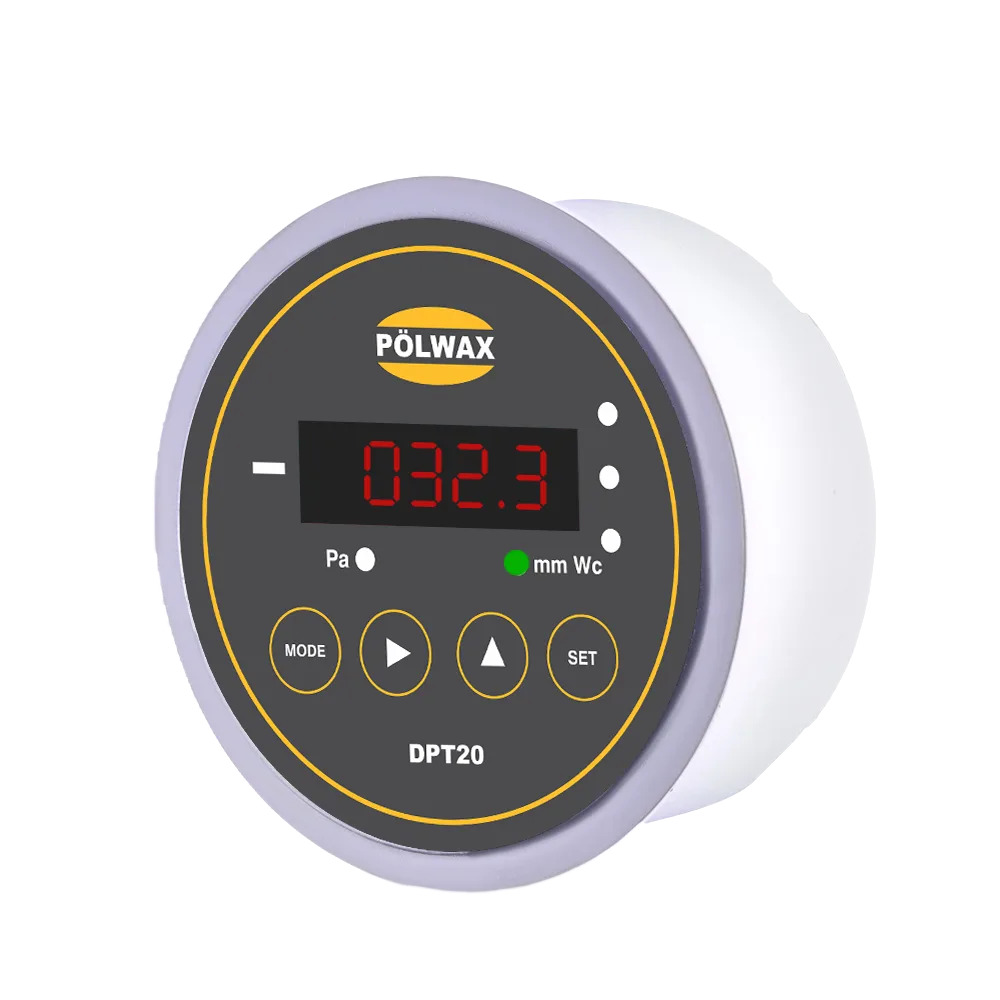

Polwax Transmitter DPT20

  • Accuracy
  • +/-0.5 - +/-1.0 %
  • Color
  • White
  • Connecting Type
  • 3 Wire
  • Connectivity Type
  • Screw terminals
  • Cut Size
  • Round (80 mm)
  • Dimension (L*W*H)
  • 86 x 35 x 80
  • Measuring Units
  • Pa & mmWC
  • Model
  • DPT20
  • Mounting
  • Panel Mounting
  • Mounting Type
  • Panel Mounting
  • Operating Temperature
  • -10C to +60C
  • Output
  • 0 -10 V ( Optional )
  • Power Supply
  • 12 24 VDC
  • Pressure Range
  • 50 mm WC: 9 PSI - 100 to 1000 mmWC: 19 PSI
  • Process Connection
  • Push on connection for 3/16 ID tubing
  • Protection
  • IP54
  • Response Time
  • 500 ms
  • Storage Temperature
  • 10C to 70C
