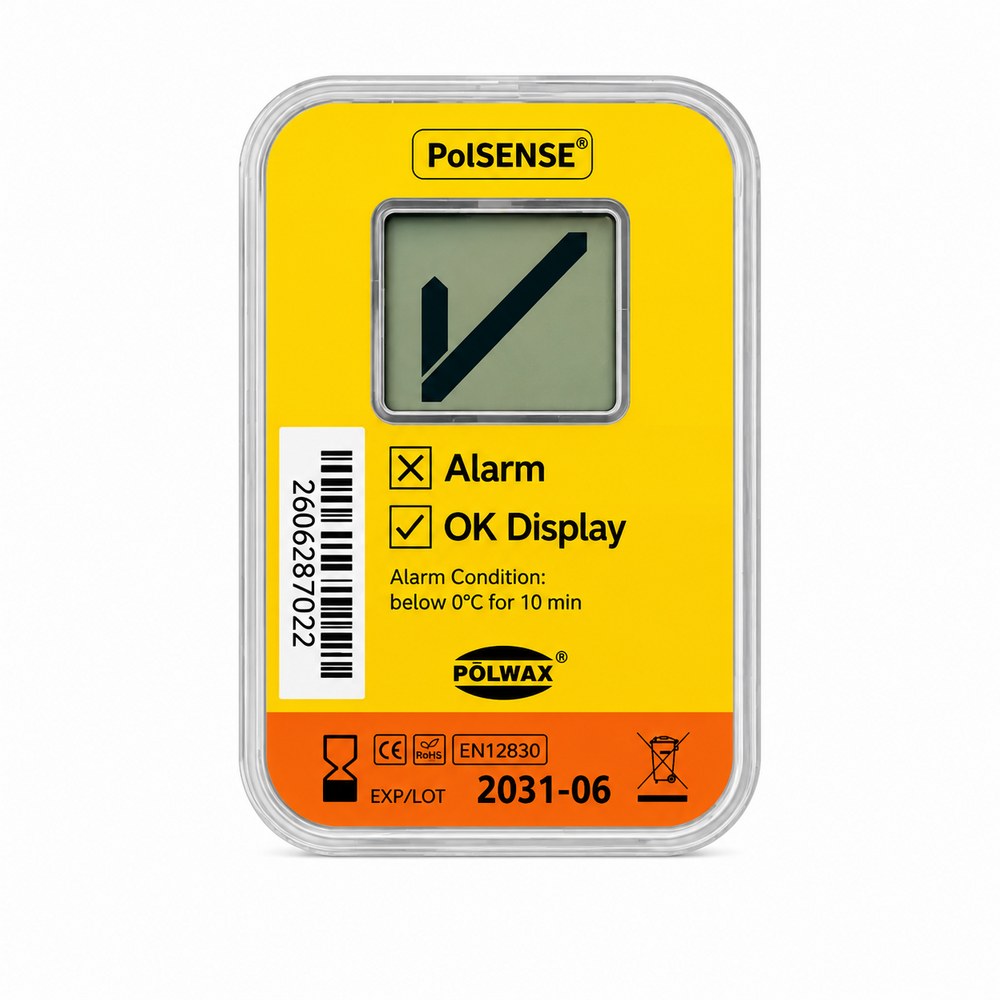

Freeze Indicator PolSENSE-O

Get a Price/Quote

MOQ : 1 Piece

Freeze Indicator PolSENSE-O Specification

Protection Class
IP67

Dimension (L*W*H)
55 mm x 40 mm x 13 mm

Manipulation
PolSENSE can be used as often as required during the shelf life as long as the alarm condition has not been shown

Configuration
Factory preset

Application
Cold Chain Logistics

Product Type
Electronic Freeze Indicator

Alarm Limit
-0.5C/+31.1F

Temperature Accuracy
±0.3°C typ.; ±0.6°F typ.

Measurement Interval
2 min

Label
Barcode included

Weight
23 g

Battery
Lithium coin cell (CR2450), compliant with IATA DGR PI 970-II

Shell Material
Transparent ABS plastic

Type
Electronic

External Size
CE mark on the back cover, 3M tape depending on customer requirement

Freeze Indicator PolSENSE-O About

Product Name	Freeze Indicator PolSENSE-O
Product Type	Electronic Freeze Indicator
Storage Conditions	+4C to +50C / +40F to +122F
Operating Temperature	-20C to +55C / -4F to +131F
Temperature Accuracy	0.3C typ.; 0.6F typ.
Time Measurement Accuracy	5% typ. at 0C / 32F
Battery	Lithium coin cell (CR2450), compliant with IATA DGR PI 970-II
Type	Electronic
Protection Class	IP67
Label	Barcode included
Operating & Shelf Life	Up to 5 years (expiry date printed on label)
Activation	Always active; no start function
Stopping	No stop function
Configuration	Factory preset
Manipulation	PolSENSE can be used as often as required during the shelf life as long as the alarm condition has not been shown
Warranty	2 years from delivery
External Dimensions	CE mark on the back cover, 3M tape depending on customer requirement
Shell Material	Transparent ABS plastic
Dimensions	55 mm x 40 mm x 13 mm
Weight	23 g
Standards	RoHS, REACH (EC) 1907/2006, CE, EN 60068 series, EN 61000-4-2, EN 61000-6-2/-3, EN 60529 (IP67), IATA
Alarm Limits	Alarm Time	Measurement Interval
-0.5C/+31.1F	60 min below-0.5C / +31.1F	2 min

Highly accurate temperature monitoring
Detects exposure below 0C for 10 minutes
Clear LCD display with visual status indication
Compact and lightweight design
Flexible Reporting Options
Compact and Portable Design
Suitable for packaging, shipping, and storage

PolSENSE is a single-use Freeze indicator that continuously monitors environmental conditions during shipping and storage. Once activated, the indicator permanently records whether the product has experienced temperatures below the configured limit for the required exposure time.

Its easy-to-read LCD display enables instant inspection at any point in the supply chain. The indicator offers a clear pass/fail display without requiring batteries, software, or specialized equipment, making it an economical and reliable solution for cold chain monitoring.
