WiFi Datalogger Manufacturer

Get a Price/Quote

WiFi Datalogger Manufacturer Specification

Operating Temperature
10 to 60 C Celsius (oC)

Connection
USB

Operate Method
Touch

Product Type
Datalogger

Power Supply
24V DC (Adaptor)

Model No
Clima CW400T

Language Support
English

Mounting
Wall Mount / Table Mount

Input
Temp + RH / RTD Pt100 / Thermocouple / 4-20mA / 0-20mA / 0-10V / 0-5V / 0-1V / Digital

Software Detail
POLWAX_P-View (Suitable for Win10 / Win10Pro)

Application
Industrial

Color
White/Grey

Brand Name
Polwax

No Of Channel
4

Weight
250 Grams (g)

Thermocouples
K, J, N, R, S, T

Temperature Range
-40 to 70 C Celsius (oC)

Feature
Real-time Data Monitoring

Report Format
PDF/.CSV/.XLSX

Start Method
Automatic

Storage Temperature
10 to 60 C Celsius (oC)

Communication
WiFI

Dimension (L*W*H)
200 x 230 x 150 Millimeter (mm)

Password Protection
Access to configuration is allowed only after the user has entered a password

Protection Class
IP65

Data Capacity
16000

Sensor Filter
ABS (standard) / Ceramic / SS (optional)

Resolution
Temp: 0.01 / RH: 0.01

Measuring Range
-40 to 70 C Celsius (oC)

WiFi Datalogger Manufacturer Trade Information

Sample Available
No

About WiFi Datalogger Manufacturer

Media Compatibility	Air, non-combustible, non-corrosive gases
Parameter	Clima CW100T	Clima CW200T	Clima CW400T	Clima CW200TH	Clima CW400TH
Part Code	0399 1111	0399 1211	0399 1411	0399 1221	0399 1421
No. of Channels	1	2	4	2	4
Input Parameters	Temperature	Temperature	Temperature	Temperature + Humidity	Temperature + Humidity
Measuring Ranges	External Sensor Pt100 (-100 to 400°C)	External Sensor Pt100 (-100 to 400°C)	External Sensor Pt100 (-100 to 400°C)	Integrated Sensor Temperature: -40 to +70°C Humidity: 0-100% RH	External Sensor Temperature: -40 to +70°C Humidity: 0“100% RH
Sensor Accuracy	Temperature: °C / Humidity: ±2% RH (at 5-“95% RH)
Display	TFT Color Touch Screen Display
Filename	Name tag, prefixed with date/time
Cloud Dashboard (Optional)	POLWAX CloudDASH360 Web App / Mobile App (Android + iOS)
Certification	CE, RoHS, EN12830
Scope of Supply	Calibration Certificate, Instruction Manual, Power Adaptor, Antenna

Real-time Data Monitoring
WiFi Data Communication
Touch Screen Display
Polwax CloudDASH360 cloud dashboard
High speed Sampling
Warranty : 2 Years

Temperature and humidity are accurately recorded by the WiFi data loggers at customizable intervals, and the measurement values are sent directly via wireless LAN to the Polwax Cloud. A WiFi data logger is instruments which allows measuring and storing the values of certain physical quantities, such as temperature, humidity, pressure, solar radiation, etc.

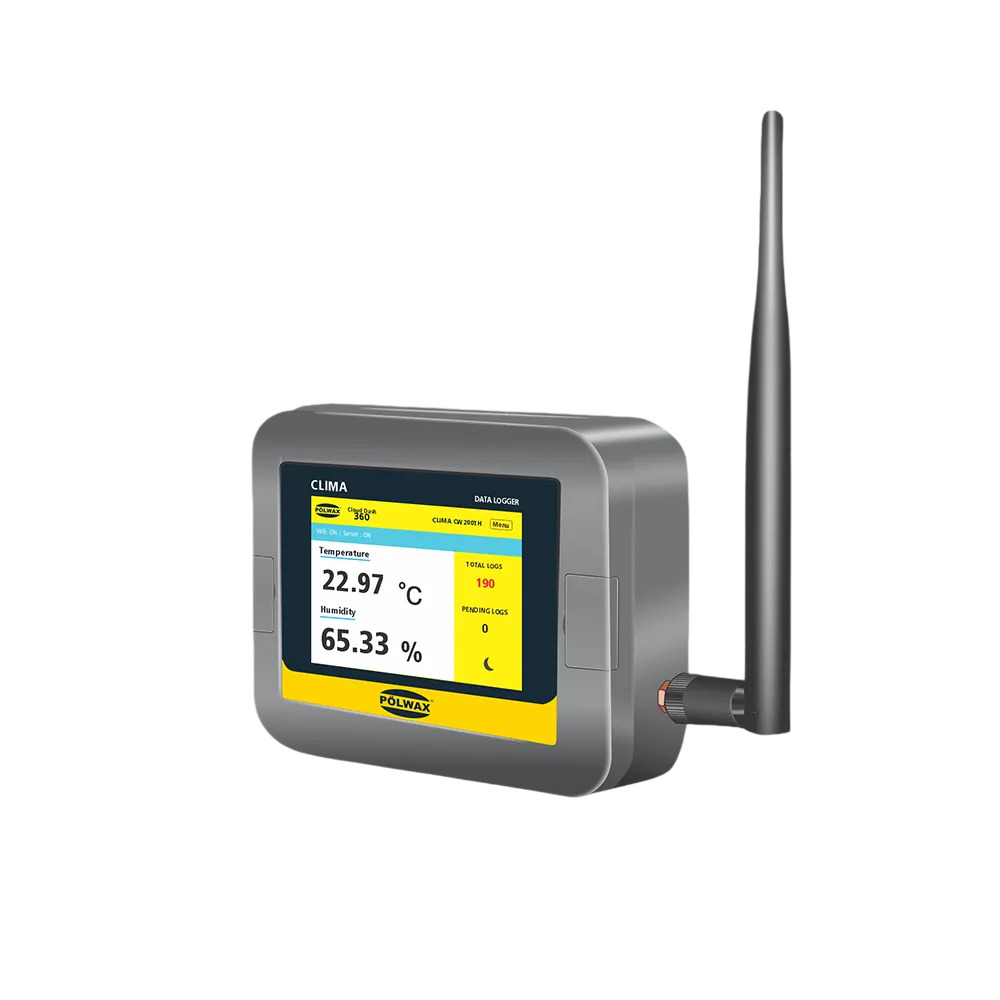

The Polwax Clima WiFi Temperature Datalogger is a cutting-edge monitoring device designed to deliver precise and reliable temperature tracking. With seamless WiFi connectivity, a robust IP65-rated enclosure, and an intuitive 3.5 touch screen display, this datalogger is ideal for industrial and commercial environments. PC the transfer of data from a digital acquisition system to a PC allows storing the measured values even after the internal memory of the acquisition system is full.
